Current monitor

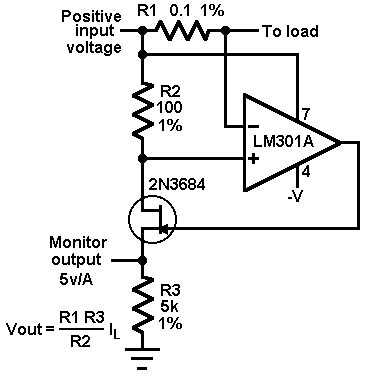

This circuit uses 2N3684 JFETs and an LM301A to create a current monitor. R1 senses current flow of a power supply. The JFET is used as a buffer because drain current equals source current (Id=Is), therefore the output monitor voltage accurately reflects the power supply current flow.
